What standards apply to the Steamquench Optimizer and what steam pressure can be used?
The Steamquench Optimizer is a pressure containing part, therefore it
is subject to certain standards. You can use any pressure meeting the

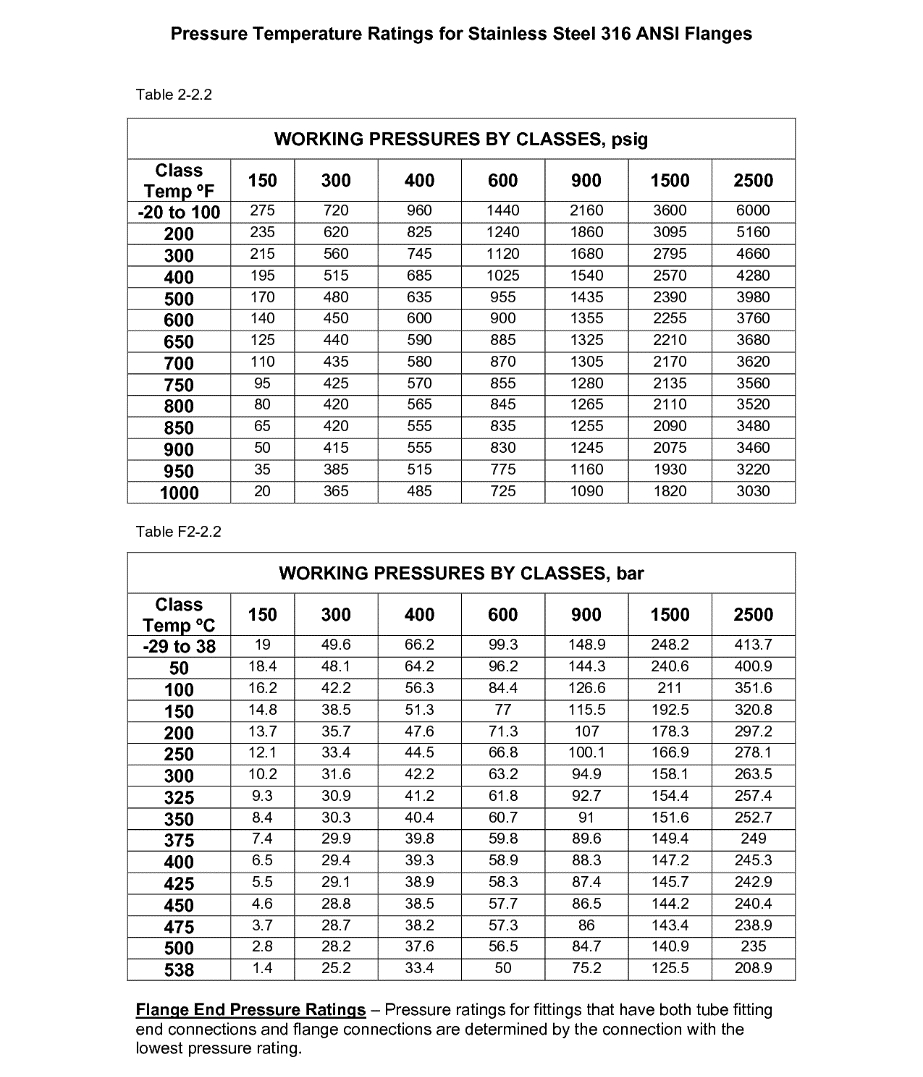

P/T table of either 150 lbs or 300 lbs flanges F316/L.
Below are the applicable standards:- Strength calculations of the entire internal skid are acc. ASME B31.3.
- Flanges are acc. ANSI B16.5.
- Welds acc. ASME B31.3 and B16.11.
- Hydrotesting acc. ASME B31.3.
- Material certified acc. 3.1.B / EN 10204.
